| ブランド名: | GoreLink |
| モデル番号: | G233-11112-25 |
| MOQ: | 1 Piece |
| 配達時間: | 1-3 Working days |
| 支払条件: | T/T,Paypal,Western Union |

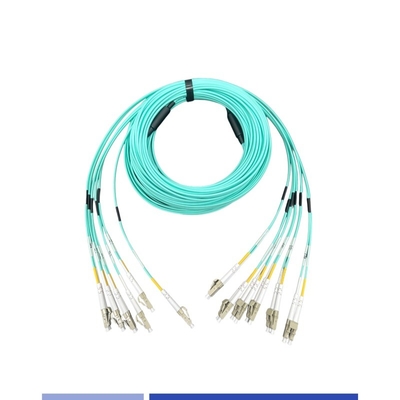

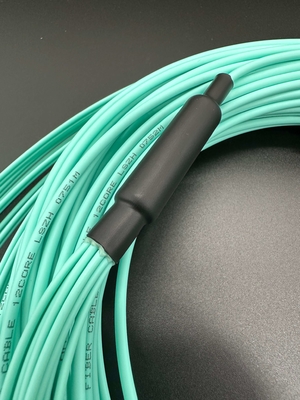

GoreLink OM3 LC-LC 12-core fiber trunk cable is a pre-terminated, high-speed multimode fiber optic cable designed for reliable data transmission in data centers, enterprise networks, and telecom applications. It consists of 12 optical fibers (6 duplex LC connectors) in a single jacket, ensuring high-density connectivity with low insertion loss.
Application
FTTH access network
Telecommunication Networks
Data Centers (40/100G SR4, QSFP+ links)
Enterprise Networks (backbone, server connectivity)
Telecom & CCTV Systems (high-bandwidth video/data transfer)
Flexible & Lightweight: Easy to route in tight spaces (e.g., server racks).
General Specification
|
Fiber Mode |
Multimode OM3 50/125um |
|
Fiber Count |
12 Fibers |
|
Connector A |
LC/PC |
|
Connector B |
LC/PC |
|
Wavelength |
850nm/1300nm |
|
Polish Way |
PC |
|
Cable Diameter |
9.5±0.05mm |
|
Cable Color |
Aqua |
|
Cable Jacket |
LSZH |
|
Cable length |
As per the order request |
|
OPTICAL PERFORMANCE |
|
|
Insertion Loss(IL) |
≤0.30 dB (Low loss) |
|
Return Loss(RL) |
≥30dB |
|
40/100G Ethernet Distance |
150m @850nm |
|
10G Ethernet Distance |
400m @850nm |
|
Operating Temperature |
-10 to +70℃ |
|
Storage Temperature |
0 to +60℃ |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G233-11112-3 |
Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,3Mtr,Fanout 2.0mm 0.5m |
|
G233-11112-5 |
Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,5Mtr,Fanout 2.0mm 0.5m |
|
G233-11112-10 |
Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,10Mtr,Fanout 2.0mm 0.5m |
|
G233-11112-15 |
Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,15Mtr,Fanout 2.0mm 0.5m |
|
G233-11112-25 |
Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,25Mtr,Fanout 2.0mm 0.5m |
|
G233-11112-30 |
Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,30Mtr,Fanout 2.0mm 0.5m |
|
* Customized length |
|
If you need any more help, please feel free to contact us at sales@gorelink.com .
|
|
